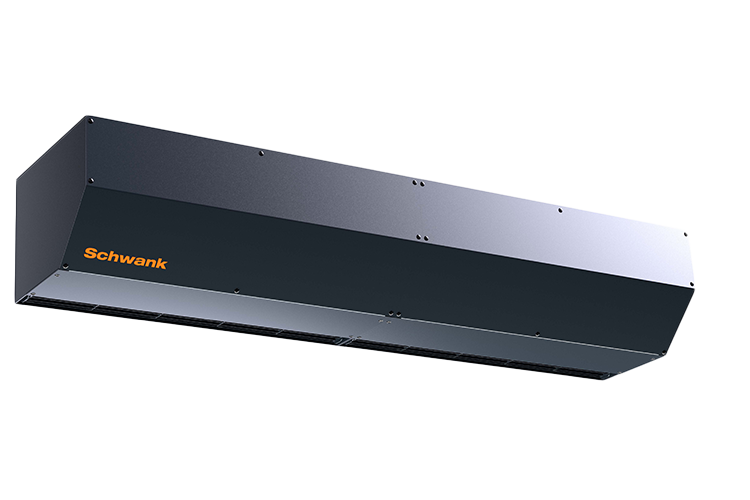

Industrial Air Curtains
Built For the Loading Dock. Ready For Anything.
Maximum Accessibility
- Factory-integrated control panel.
- Motor, blower, and electrical components are accessible when mounted.
Performance
- A standard 3-phase motor provides a longer component lifetime.
- Delivers up to 10% higher airflow with AMCA-certified performance.
- Modern fan design delivers strong, optimized airflow with less downtime.
Integrated Control Panel
- Factory-integrated controls with a single point of entry
- No external control box required.
Modern Industrial Design
- Clean aesthetic with compact footprint.
Air Curtain Products
High-Performance Air Barriers

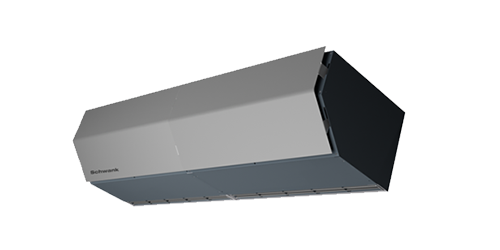

Schwank Epic Series
Engineered for industrial doorways
| Epic12 Series | Epic14 Series | |
|---|---|---|
| Mounting Height | 10' - 14' | 10' - 16' |
| Widths | 36" - 168" | 36" - 144" |
| Voltages | 120V1/ 208V1/ 480V3/ 6000V3 | 208V1/ 208V3/ 480V3/ 600V3 |
| Motor | 3/4HP AC Motor | EC 1HP Direct Drive Motor |
| Heating Options | Electric or Ambient | Electric or Ambient |

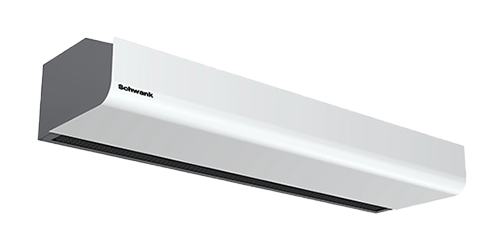

Schwank Select Series
Architectural air curtains for entrances
| Select10 Series | Select12/Select14 Series | |
|---|---|---|
| Mounting Height | 8' - 10' | 10' - 16' |
| Widths | 36", 60", 72" | 36", 60", 72", 96" |
| Voltages | 208V-230V / 480V / 600V | 208V / 480V / 600V |
| Motor | EC Motor | EC Motor |
| Heating Options | Electric or Ambient | Electric, Ambient, or Hot Water |
Schwank Grand18/Grand26 Series
High capacity air curtain system
| Grand18/Grand26 Series | |
|---|---|
| Mounting Height | 16' - 26' |
| Widths | 59", 79", 88.6", 98.5" |
| Voltages | 230V1 / 480V3 |
| Motor | EC Motor |
| Heating Options | Ambient or Hydronic |
The Monster Benfit
Industrial HVLS Fans for Indoor Spaces
Optimized Blade Design
- Our five-blade design offers a unique angle of attack up to 23°
Durability
- Built with extruded anodized aluminum blades (6063).
Monster Air Movement
- Larger blade widths of 10.25"
Built to Last
- Lifetime warranty on the blades and hub.
Performance
- Unbreakable hub made with a single piece of 713 cast aluminum alloy.
Monster Strength
- Minimal 2.5" blade flex.
MonsterFans HVLS Product Line
Powering Airflow in Large Spaces

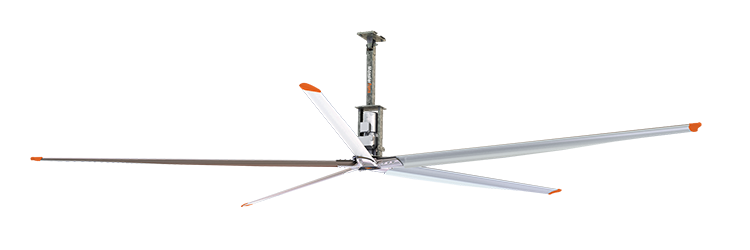

MonsterFans Geared Drive
(GD) Series
Controlled airflow geared drive power.
| GD Series | |
|---|---|
| Diameter | 8' - 24' |
| Speed | 53 - 105 RPM |
| Motor | Helical Inline Reducer |
| Mounting | Versatile Mounting System |

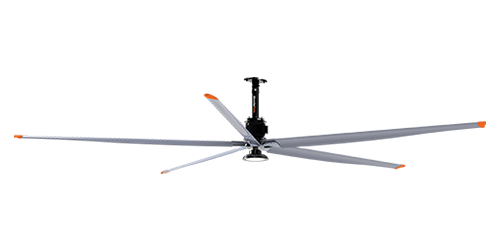

MonsterFans Direct-Drive (DD) Series
Maximum efficiency direct drive power.
| DD Series | |
|---|---|
| Diameter | 8' - 24' |
| Speed | 53 - 105 RPM |
| Motor | Gearless Direct-Drive Nidec Motor |
| Mounting | Versatile Mounting System |

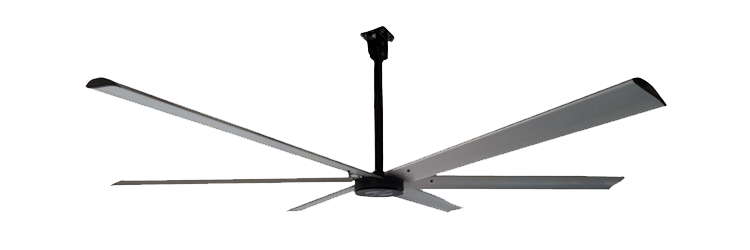

Schwank HPF Series
High performance direct drive fan.
| HPF 600 Series | |
|---|---|
| Diameter | 8' - 24' |
| Speed | 68 - 150 RPM |
| Motor | Direct Drive Motor |
| Mounting | Versatile Mounting System |

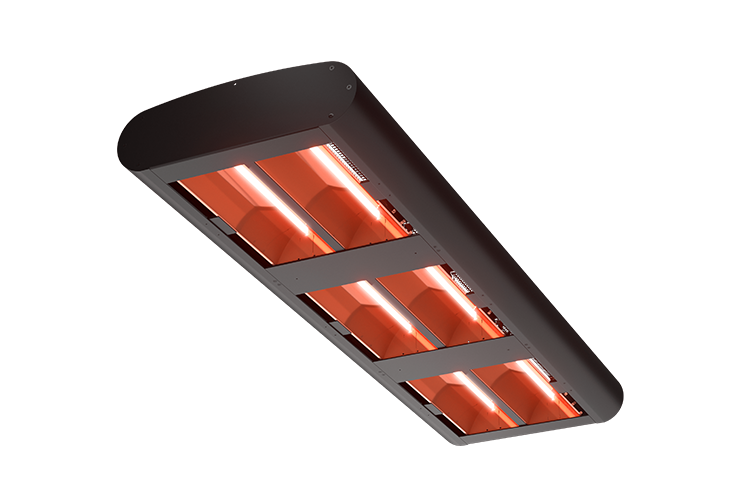

Schwank Loading Dock Heaters
Precision Heat for Industrial Environments.
Eco-Friendly
- Zero emissions & silent operation for cleaner, more comfortable spaces.
Simple Controls
- Contractor panel (2/3/4 contactors) to group heaters in zones with ON/OFF control, and working with 24VAC input from BMS, or SchwankOne.
- User-friendly wall-mounted ON/OFF disconnect switch.
Powerful Heat
- High-intensity electric infrared heat for rapid, targeted warming.
Performance
- Electric short wave infared.
Infrared Heaters Product Line
Reliable Heat. Instant Comfort.

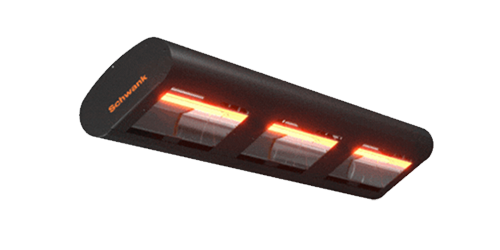

Schwank Titan Series
High-power electric heat performance.
| eSchwank Titan Series | |
|---|---|
| Model | Electric infrared heater. |
| Bulb | Short Wave |
| Mounting Height | 10' - 20' |
| Voltages | 208V / 480V / 600V / ~3P |
| Wattage | 6kW & 12kW |

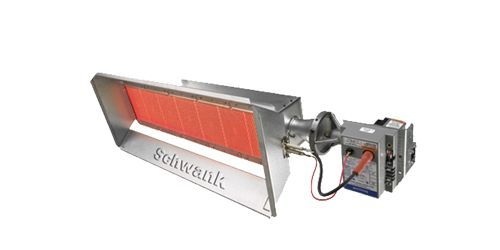

ecoSchwank
Maximum heat, minimum cost.
| ecoSchwank | |
|---|---|
| Model | Infrared Gas-Fired Heater |
| Mounting Height | Minimum 12' - 28', Maximum 70' |
| Single Burner | 21,500 - 100,000 Input BTU/h |
| Dual Burner | 143,000 & 200,000 Input BTU/h |
| Wattage | NG/LP |

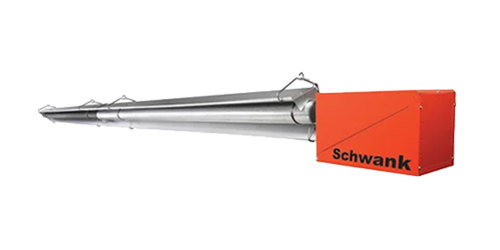

builderSchwank S100 Series
Economical indoor industrial tube heater.
| builderSchwank S100 Series | |
|---|---|
| Model | Infrared Gas-Fired Heater (1-Stage & 2-Stage) |
| Mounting Height | 8' - 28' |
| BTU/h Input Range | 45,000 - 200,000 Input BTU/h |
| Straight Tube Lengths | 20' - 70' |
| U-Tube Lengths | 10' - 30' |
| Fuel | NG/LP |
